FSO / FPSO > 200.000 DWT     |   home
FSO / FPSO > 200.000 DWT
Ta'Kuntah

See also : Juno &  Velma

 photo TaKuntah-2_zpsa4c5bbe2.jpg

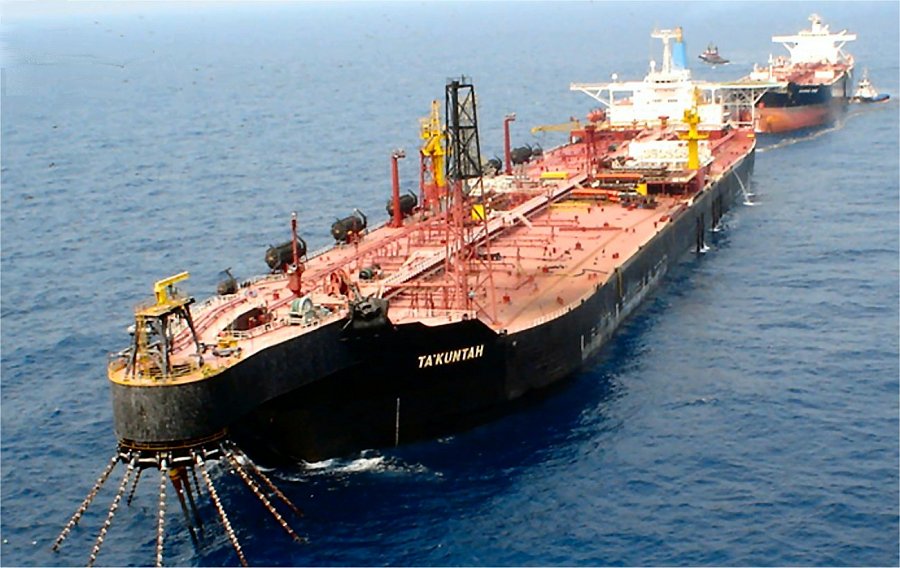

"Ta'Kuntah", offshore Mexico in 2002.
( Photo Copyright Tomasello Letterio )
 photo TaKuntah-1_zps39b61ecd.jpg
"Ta'Kuntah", offshore Gulf of Mexico in 2004.
( Photo Copyright Tomasello Letterio )
 photo TaKuntah_zps9b85106e.jpg
"Ta'Kuntah", offshore Gulf of Mexico in 2004.
( Photo Copyright Tomasello Letterio )
 photo TaKuntah-3_zps5351e210.jpg
"Ta'Kuntah", offshore Gulf of Mexico in 2004.
( Photo Copyright Tomasello Letterio )
 photo TaKuntah-4_zpse67b1af6.jpg
"Ta'Kuntah", offshore Gulf of Mexico in 2004.
( Photo Copyright Tomasello Letterio )
 photo TaKuntah-5_zpsa23b6a6d.jpg
"Ta'Kuntah", offshore Gulf of Mexico in 2004.
( Photo Copyright Tomasello Letterio )

The FSO Ta'Kuntah was installed as part of the Cantarell Field Development in the Gulf of Mexico. The field is located in the Bay of Campeche, offshore Mexico's Yucatan peninsula.
The FSO Ta'Kuntah is a converted ULCC tanker with a SOFEC external turret mooring system, two flexible risers connected in a lazy-S configuration between the turret and a pipeline end manifold (PLEM) on the seabed, and a unique offloading system. The offloading system allows export tankers to moor either in tandem or side-by-side, both individually and simultaneously. The FSO is designed to handle 800,000 BOPD with no allowance for downtime.
The first FSO in the Gulf of Mexico, The FSO Ta'Kuntah, achieved the first oil on August 1998. MODEC owned and operated the FSO for 15 years. The FSO was purchased by the client in September 2013.

Name: Juno
IMO No: 7389493
Ex: Zenit Juno-1986, Velma-1985
Built: 1978
Type: Tanker
Status: In Service from 2002 as FSO Ta'Kuntah
SubType: Crude
Flag: Bahamas
DWT: 357.616
Draft: 22.36
Builder: Kockums (555)
GT: 178.445
LOA: 362.58
Owner: N&T Argonaut
NT: -
Beam: 60.05
Speed/Cons: 15.50/115.00
Class: -
Depth: 28.33
Engine Type: Kawasaki Steam
Cubic: 436.424

Additional Information:
The Miramar Ship Index for "VELMA"
IDNo:
7389493
Year:
1978
Name:
VELMA
Keel:
23.03.1977
Type:
Tanker
Launch Date:
29.10.1977
Flag:
NOR
Date of completion:
30.12.1977

Tons:
178445
Link:
-
DWT:
357632
Yard No:
555
Length overall:
362.6
Ship Design:
LPP:
350.0
Country of build:
SWE
Beam:
60.1
Builder:
Kockums MV
Material of build:
Location of yard:
Malmo
Number of screws/Mchy/Speed(kn):
1ST-15.5

Naval or paramilitary marking :
A:
*
End:
1999

Subsequent History:
1985 ZENIT JUNO - 1986 JUNO -
[ 1997 converted to FPSO tanker ] -
1997 TA'KUNTAH

Disposal Data:
Deleted 1999/00 as non-propelled hulk in 2002 FSO Ta'Kuntah.

History:
ON
LR/IMO
ID
Year
Name
Tons
Change
Registered Owner
7389493
7389493
1978
VELMA
178445
????
7389493
7389493
1978
ZENIT JUNO
178445
1985
????
7389493
7389493
1978
JUNO
178445
1986
N&T Argonaut
7389493
7389493
1978
TA'KUNTAH
169401
1997
Modec
