FSO Cidade De Macae MV15

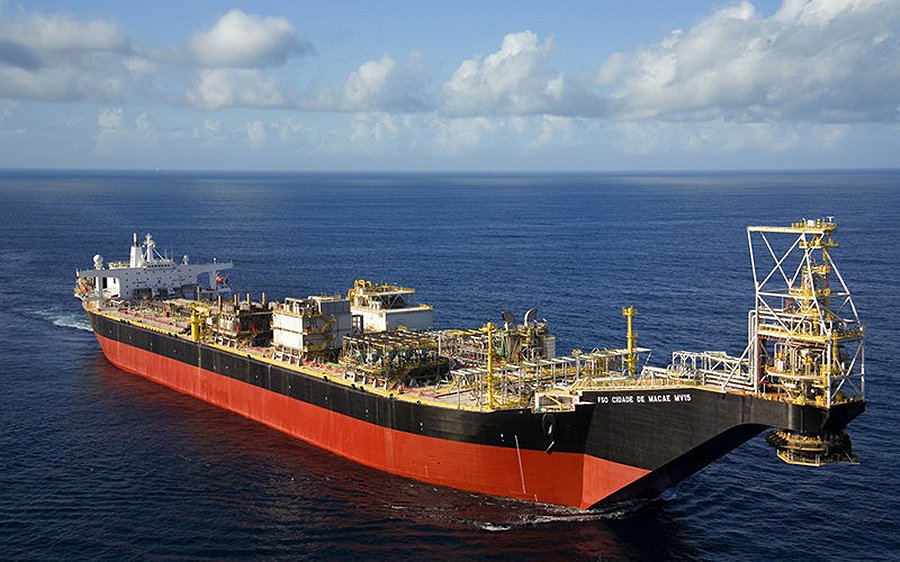

"FSO Cidade De Macae MV15" at Macao, Brasil, Marlim Sul, Roncador and Marlim Leste field. (Photo MODEC)
At Jurong Shipyard, Singapoe 2007, rebuild from "Marine Pacific 1", to "FSO Cidade De Macae MV15".
( Photo Copyright lys )
"FSO Cidade De Macae MV15".
( Photo Copyright Basrain Chikomoto )
"FSO Cidade De Macae MV15".
( Copyright reserved )
The "FSO Cidade de Macaé MV15", which has a storage capacity of 2.15 million barrels of oil, is one of the largest FSO units in the world. It was converted from an Ultra Large Crude Carrier (ULCC).
The FSO is equipped with two independent offloading systems: direct offloading utilizing deep-well cargo pumps on the FSO via an offloading hose to the tandem moored offtake tanker, which is capable of offloading 944,000 barrels of oil per day; the main system is the export pumping system on deck which can export 1.58 million barrels of oil per day from the FSO via export risers to two loading CALM buoys located 2.5 km and 5.0 km away from the vessel.
The FSO is permanently moored by a SOFEC external turret with 12 anchor legs. The FSO topsides include a crude inlet heater module, crude import/export metering module, E-house and three gas turbine generators sets which make up the power generation module.
The FSO is the floating oil storage and offloading component of the Planned Development and Oil Distribution (PDET) facility designed by Petrobras to be the production hub for multiple floating production units in Campos Basin - one of the most sophisticated offshore oil distribution facilities in the world. The FSO will receive and export production from five platforms offshore Brazil: P-52 (Roncador), P-53 (Marlim Leste), P-51 (Marlim Sul) and P-55 (Roncador) and Roncador Module 4 unit that will be installed in the future. The FSO is capable of receiving up to 818,000 barrels of oil per day.
|
Original Name
|
U.S.T. Pacific
|
Type
|
ULCC
|
Delivered
|
7-12-79
|
IMO No
|
7417460
|
Builder & Yard
|
Newport News Shipbuilding & Dry Dock Co., Newport News.
|
Yard No
|
614
|
Engine
|
Steam
|
KW
|
33100
|
GRT
|
189416
|
NTR
|
171126
|
DWT
|
404853
|
LOA
|
362,14
|
LBP
|
348,40
|
Beam
|
69,49
|
Draft
|
22,81
|
Depth
|
28,96
|
Other names and history
|
1994 Marine Pacific
2002 Marine Pacific I
2005 converted to FSPO
2006 FSO Cidade de Macae MV15
|
Scrapped
|
--
|
The Miramar Ship Index for "U.S.T. PACIFIC"
IDNo:
|
7417460
|
Year:
|
1979
|
Name:
|
U.S.T. PACIFIC
|
Keel:
|
01.08.1978
|
Type:
|
Tanker
|
Launch Date:
|
08.09.1979
|
Flag:
|
USA
|
Date of completion:
|
07.12.1979
|
Tons:
|
189416
|
Link:
|
-
|
DWT:
|
404531
|
Yard No:
|
614
|
Length overall:
|
362.1
|
Ship Design:
|
|
LPP:
|
348.4
|
Country of build:
|
USA
|
Beam:
|
69.5
|
Builder:
|
Newport News SB.
|
Material of build:
|
|
Location of yard:
|
Newport News
|
Number of screws/Mchy/Speed(kn):
|
1ST-15.5
|
|
|
Subsequent History:
1994 MARINE PACIFIC - 2002 MARINE PACIFIC I -
[ 2005 converted to FSO tanker ] -
2006 FSO CIDADE DE MACAE MV15
Disposal Data:
-
History:
ON
|
LR/IMO
|
ID
|
Year
|
Name
|
Tons
|
Change
|
Registered Owner
|
|
7417460
|
7417460
|
1979
|
U.S.T. PACIFIC
|
189416
|
|
United States Trust Co. of New York
|
|
7417460
|
7417460
|
1979
|
MARINE PACIFIC
|
192707
|
1994
|
Marine Pacific Ltd.
|
|
7417460
|
7417460
|
1979
|
MARINE PACIFIC I
|
192707
|
2002
|
Marine Pacific Ltd.
|
|
7417460
|
7417460
|
1979
|
FSO CIDADE DE MACAE MV15
|
199186
|
2006
|
PRA 1 MV 15 BV
|
