Auke Visser's International Super Tankers | home
Luxembourg
See also : More photos "Luxembourg"

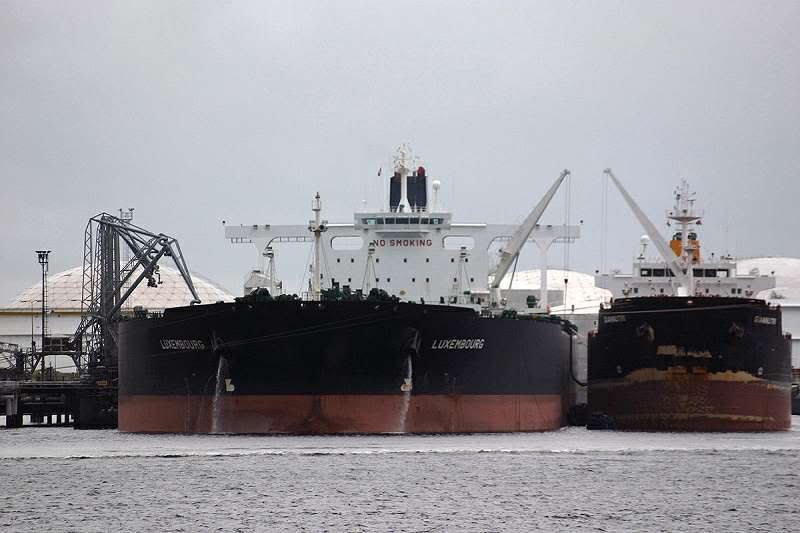

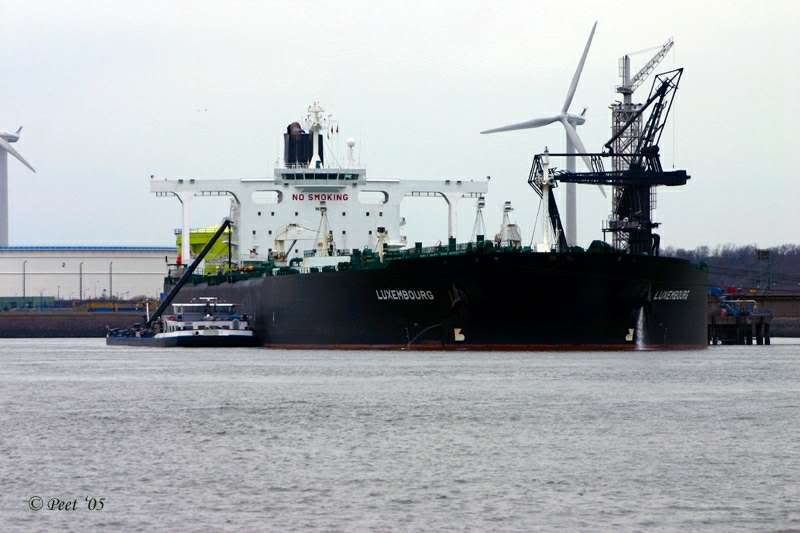

17-02-2005 "Luxembourg" in the 8th Petroleumharbour, at the MOT Rotterdam.
( Photo by Peet de Rouw )

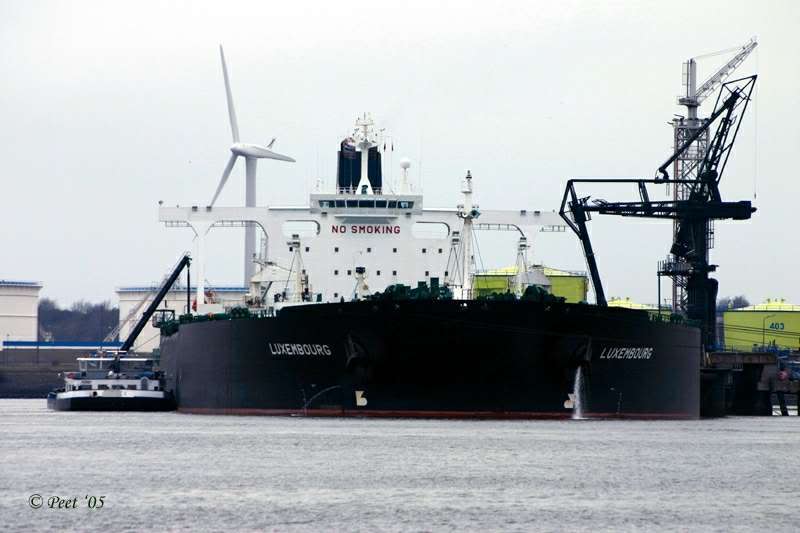

17-02-2005 "Luxembourg" in the 8th Petroleumharbour, at the MOT Rotterdam.
( Photo by Peet de Rouw )

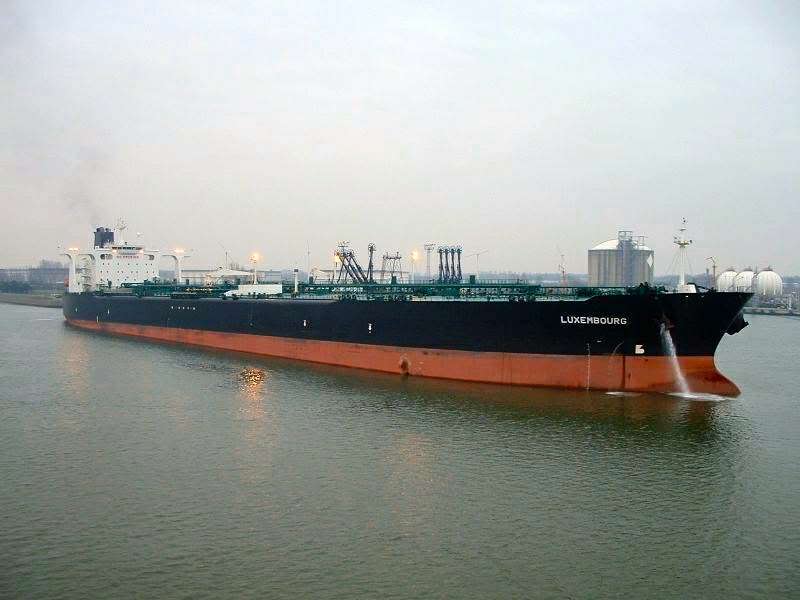

"Luxembourg" Europoort, 31 July 2005.
( Photo by Michael Harms )

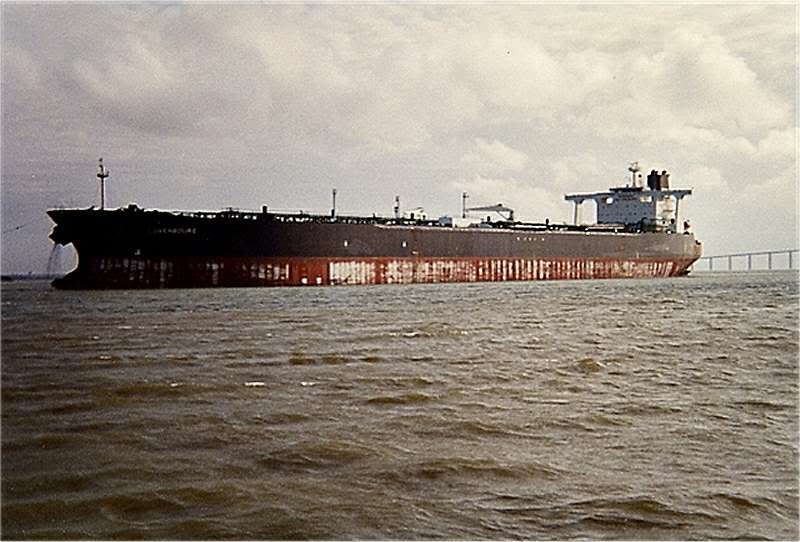

"Luxembourg.
( Collection Didier Pincón )

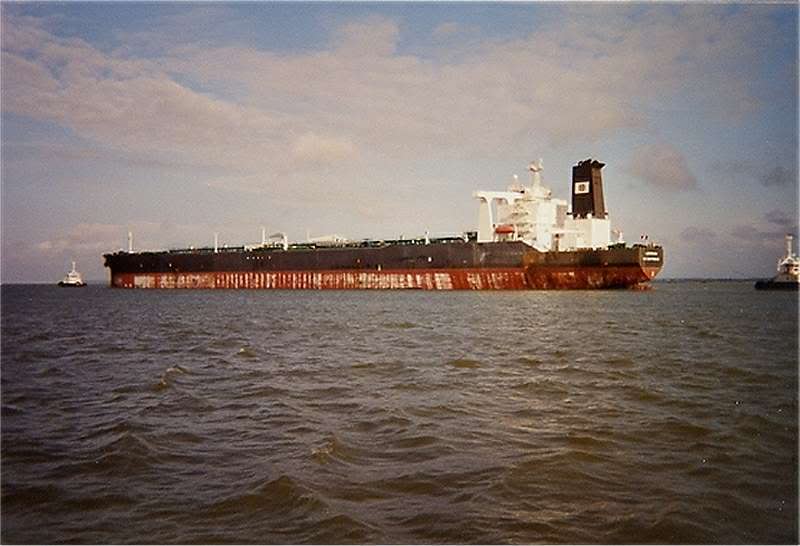

"Luxembourg".
( Collection Didier Pincón )

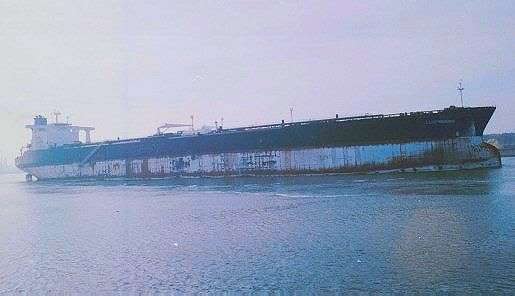

"Luxembourg".
( Photo by Frans Sanderse )
"Luxembourg".
( Copyright reserved )

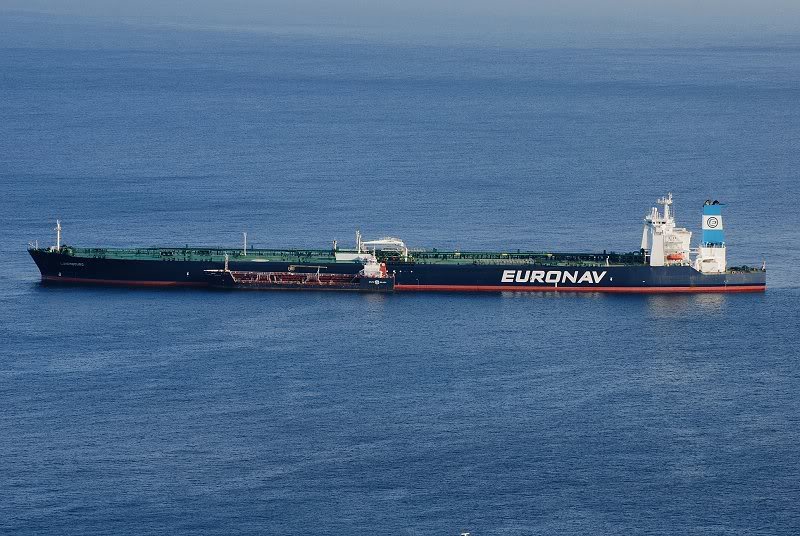

"Luxembourg" she arrived at Tenerife on 07/01/2009 from Al-Fujairah to Rotterdam.
( Photo by Ignacio Cabero )
The Miramar Ship Index for
|
LUXEMBOURG
|
IDNo / IMO
|
9171436
|
Year
|
1999
|
Name
|
LUXEMBOURG
|
Flag
|
FRA
|
Owner
|
Euronav NV
|
Type
|
Tanker
|
Tons
|
157833
|
DWT
|
298997
|
LOA
|
332,00
|
LPP
|
320,30
|
Beam
|
58,00
|
Dept
|
31,00
|
Draft
|
20,80
|
Machinery
|
1D-15
|
kW
|
25509
|
ShipDesign
|
VLCC
|
Builder
|
Daewoo Shipbuilding & Heavy Mach., Ltd.
|
Yard
|
Okpo
|
Yard No
|
5120
|
Country built
|
KOR
|
Keel
|
22.06.1998
|
Launch
|
26.09.1998
|
Completed
|
05.01.1999
|
Subsequent History
|
2014 LUXE - Modec Venture 28BV
2018 LUXE - Libra MV31 BV
|
End
|
----
|
Disposal Data
|
----
|
LUXEMBOURG
|
IMO NUMBER
|
9171436
|
VESSEL TYPE
|
CRUDE OIL TANKER
|
HULL TYPE
|
DOUBLE HULL
|
GROSS TONNAGE
|
157.833 tons
|
SUMMER DWT
|
298.997 tons
|
BUILD
|
1999
|
BUILDER
|
DSME SEOUL - SOUTH KOREA
|
FLAG
|
FRANCE INTERNATIONAL REGISTER
|
MANAGER/OWNER
|
EURONAV ANTWERP - BELGIUM
|
INSURER
|
WEST OF ENGLAND P&I ASSOCIATION LUXEMBOURG
|
VESSEL DETAILS
|
||
CLASSIFICATION
|
+100A1 DOUBLE HULL OIL TANKERESP , SHIPRIGHT(SDA, FDA, CM) *IWS , LI +LMC SCM IGS UMS NAV1
|
|
|
LAST DRY DOCK
|
2008 Dec 13
|
|
LAST SPECIAL SURVEY
|
2009 Jan 07
|
GENERIC
|
SPEED
|
15,0 knots
|
DIMENSIONS
|
BOW TO BRIDGE
|
280,60 m
|
|
BREADTH EXTREME
|
58,04 m
|
|
BREADTH MOULDED
|
58,04 m
|
|
DEPTH
|
31,00 m
|
|
DRAUGHT
|
20,80 m
|
|
FREEBOARD
|
10.200,0 mm
|
|
KEEL TO MASTHEAD
|
63,10 m
|
|
LENGTH B/W PERPENDICULARS
|
320,27 m
|
|
LENGTH OVERALL
|
332,06 m
|
TONNAGES
|
NET TONNAGE
|
108.708 tons
|
LOADLINE
|
DEADWEIGHT (MAXIMUM ASSIGNED)
|
299.150 tons
|
|
DEADWEIGHT (NORMAL BALLAST)
|
102.611 tons
|
|
DEADWEIGHT (SEGREGATED BALLAST)
|
96.673 tons
|
|
DEADWEIGHT (TROPICAL)
|
306.982 tons
|
|
DEADWEIGHT (WINTER)
|
291.318 tons
|
|
DISPLACEMENT (LIGHTSHIP)
|
41.947 tons
|
|
DISPLACEMENT (NORMAL BALLAST)
|
144.558 tons
|
|
DISPLACEMENT (SEGREGATED BALLAST)
|
138.621 tons
|
|
DISPLACEMENT (SUMMER)
|
341.097 tons
|
|
DISPLACEMENT (TROPICAL)
|
348.929 tons
|
|
DISPLACEMENT (WINTER)
|
333.265 tons
|
|
DRAFT (LIGHTSHIP)
|
3,15 m
|
|
DRAFT (NORMAL BALLAST)
|
10,10 m
|
|
DRAFT (SEGREGATED BALLAST)
|
9,73 m
|
|
DRAFT (SUMMER)
|
22,02 m
|
|
DRAFT (TROPICAL)
|
22,48 m
|
|
DRAFT (WINTER)
|
21,57 m
|
|
DRAUGHT AFT (NORMAL BALLAST)
|
11,41 m
|
|
DRAUGHT FORE (NORMAL BALLAST)
|
8,77 m
|
|
FREEBOARD (LIGHTSHIP)
|
23.729,0 mm
|
|
FREEBOARD (NORMAL BALLAST)
|
16.895,0 mm
|
|
FREEBOARD (SEGREGATED BALLAST)
|
17.278,0 mm
|
|
FREEBOARD (SUMMER)
|
4.852,0 mm
|
|
FREEBOARD (TROPICAL)
|
4.394,0 mm
|
|
FREEBOARD (WINTER)
|
5.310,0 mm
|
|
FWA (SUMMER DRAFT)
|
500,0 mm
|
|
TPC IMMERSION (SUMMER DRAFT)
|
170,72 tons
|
CAPACITIES
|
BALLAST
|
100.213 m3
|
COMMUNICATION
|
CALL SIGN
|
FNHS
|
HISTORICAL INFO
|
DATE OF ORDER
|
1997 Jan 01
|
|
FIRST MOVEMENT
|
1999 Jan 07
|
|
KEEL LAID
|
1998 Jun 22
|
|
YARD NUMBER
|
5.120
|
HISTORICAL INFO
|
||
FORMER FLAGS
|
since 2007 Jun 30 FRENCH SOUTHERN & ANTARCTIC TERRITORIES
|
|
|
since 2000 Jan 16 LUXEMBOURG
|
|
NEW NAME:
|
05/2014- LUXE
|
To : Modec Inc.
|
