BULK- & ORE Carriers . 175.000 DWT Part D - M | home
Hyundai Continental
"Hyundai Continental".
( Copyright reserved )
"Hyundai Continental".
( Copyright reserved )
"Hyundai Continental".
( Copyright reserved )
"Hyundai Continental".
( Copyright reserved )
"Hyundai Continental".
( Copyright reserved )

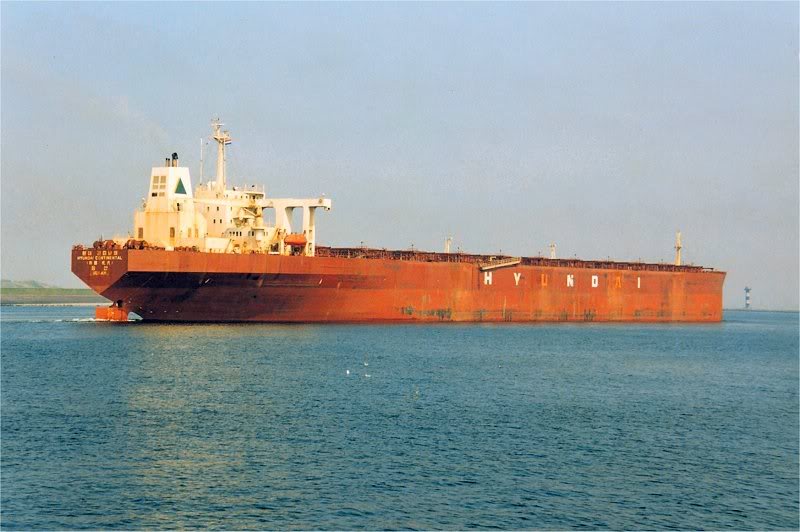

"Hyundai Continental", at Europoort, Rotterdam.
( Photo Copyright Pieter Melissen )
Korean Register of ships :
IMO No.
|
8517918
|
Official No.
|
SGR-887718
|
Signal Letters
|
D9RV
|
Radio Installations
|
GMDSS A1+A2+A3
|
Ship's Name(English)
|
HYUNDAI CONTINENTAL
|
Ship's Name(Korean)
|
--
|
Former Names
|
--
|
Owner
|
HYUNDAI MERCHANT MARINE CO., LTD.
|
|
Tel02-3706-6249 Fax:02-736-8496
|
Manager
|
HYUNDAI MERCHANT MARINE CO., LTD.
|
|
Tel02-3706-6249 Fax:02-736-8496
|
Technical Manager
|
HYUNDAI MERCHANT MARINE CO., LTD.
|
|
Tel051-462-0353 Fax:051-462-0354
|
Port of Registry
|
SEOGWIPO
|
Flag
|
KOREA
|
Class notations
|
|
Hull
|
+KRS 1
|
Ship type
|
BULK CARRIER 'ESP'
|
Special feature
|
|
Machinery
|
+KRM 1 UMA-1
|
Refrigerating. Installaion
|
|
Special Description
|
|
Other Classification
|
|
Tonnnages
|
|
Gross
|
101,466
|
Gross on ITC
|
101,466
|
Net on ITC
|
|
Deadweight
|
200,269
|
Freeboard Summer(mm)
|
6475
|
Draft(m)
|
17.570
|
Speed(Kt)
|
13.40
|
Propulsion System of Ship
|
M
|
Overall Length(m)
|
309.00
|
Reg. Dimensions(L X B X D)(m)
|
298.38 X 50.00 X 24.00
|
Rule Dimensions(L X B X D)(m)
|
298.00 X 50.00 X 24.00
|
No. of Decks
|
1DK
|
Bottom Framing
|
|
No. of Trans. Bulkheads
|
13 W/T
|
Type of Superstructure
|
|
Kind of Chain
|
Grade III (97.0)
|
(Required Diameter(mm))
|
|
Cargo type & Capacity(m3)
|
|
Tank type & Capacity(m3)
|
|
Hatchway Number & Size(m)
|
1 (11.76 X 17.00)
2 (11.76 X 23.00)
3 (11.76 X 23.00)
4 (11.76 X 23.00)
5 (11.76 X 23.00)
6 (11.76 X 23.00)
7 (11.76 X 23.00)
8 (11.76 X 23.00)
9 (11.76 X 23.00)
10 (11.76 X 23.00)
11 (11.76 X 23.00)
|
No. & (SWL) of Derricks/Cranes
|
|
No. & Type of Engine
|
1D: 2 SA 6 CY
|
Bore & Stroke
|
800X2592
|
Output kW/rpm
|
12021/71.0
|
No. & Kind of Boiler
|
|
Pressure(kg/cm2)
|
|
Heating Surface Area(m2)
|
|
No. & Capacity of Generator
|
3 AC 700kVA 450VOLT
|
Shipbuilder
|
HYUNDAI HEAVY INDUSTRIES CO., LTD.
|
Place of Build
|
ULSAN
|
Date of Build
|
09.03.1988
|
Hull No.
|
H-614
|
Date of Keel Laid
|
19.10.1987
|
Date of Launched
|
24.01.1988
|
Engine Builders
|
HYUNDAI ENGINE & MACHINERY CO., LTD.
|
Place of Manufacturer
|
ULSAN
|
Date of Manufacturer
|
198712
|
Boiler Makers
|
HYUNDAI HEAVY INDUSTRIES CO., LTD.
|
Place of Manufacturer
|
ULSAN
|
Date of Manufacturer
|
198711
|
