Hanjin Brazil

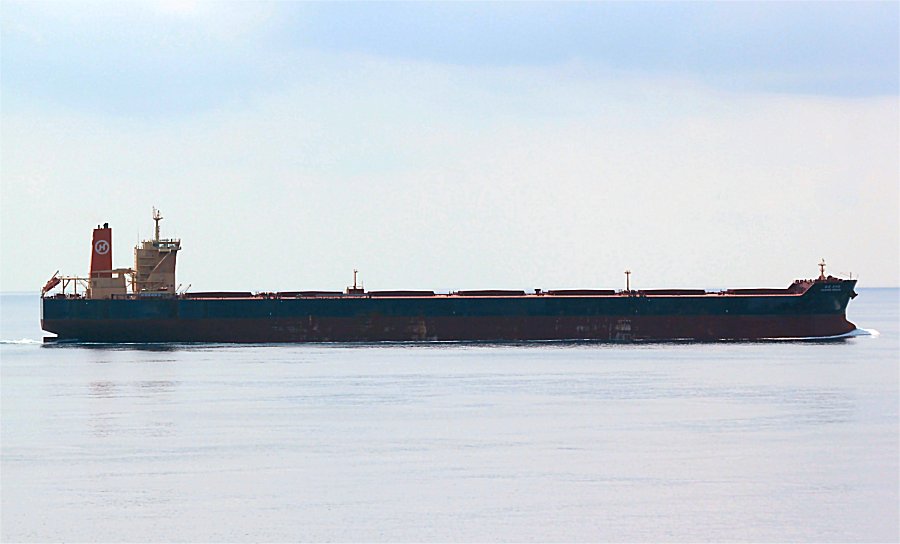

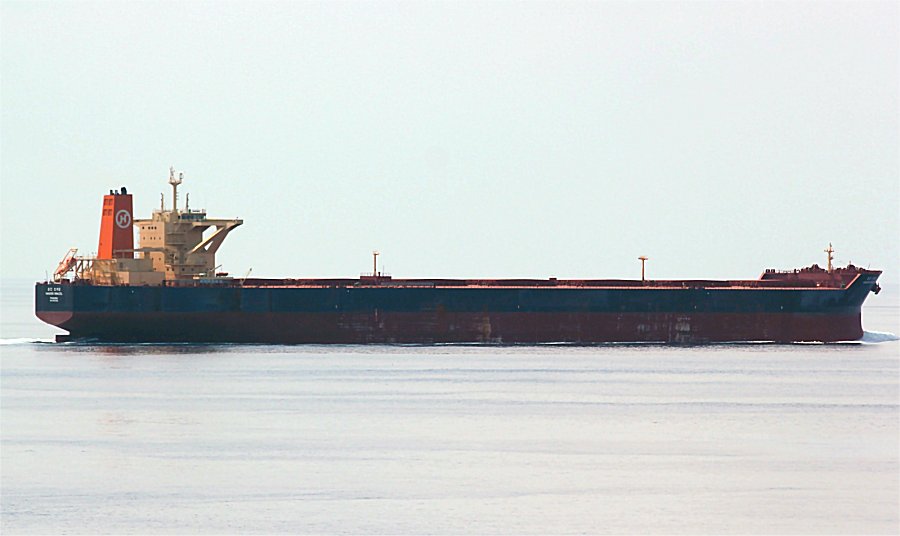

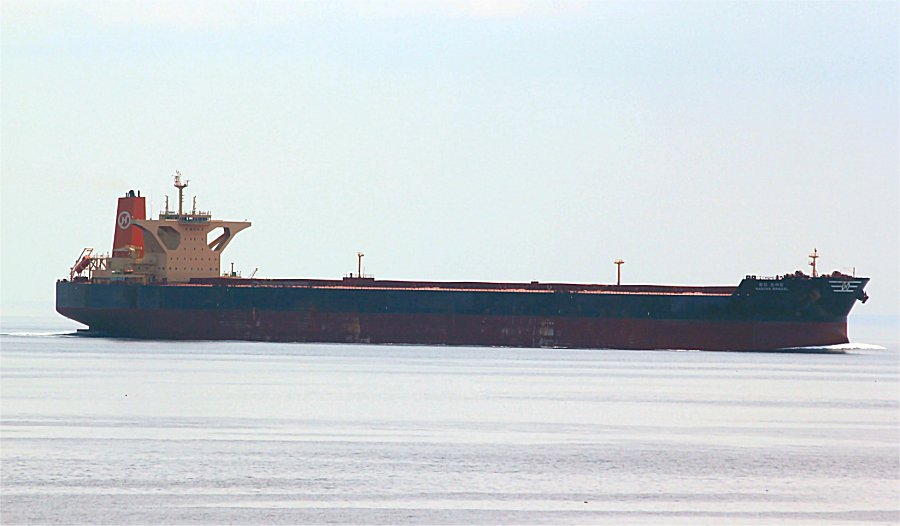

"Hanjin Brazil", in Strait of Malacca, December 8th, 2013.
( Photo Copyright Vladimir Knyaz )
"Hanjin Brazil", in Strait of Malacca, December 8th, 2013.
( Photo Copyright Vladimir Knyaz )
"Hanjin Brazil", in Strait of Malacca, December 8th, 2013.
( Photo Copyright Vladimir Knyaz )

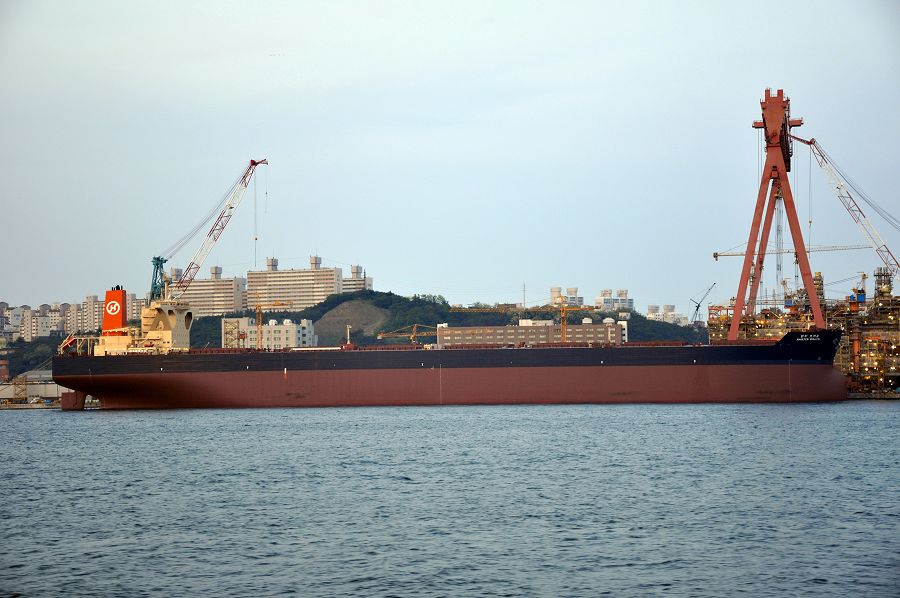

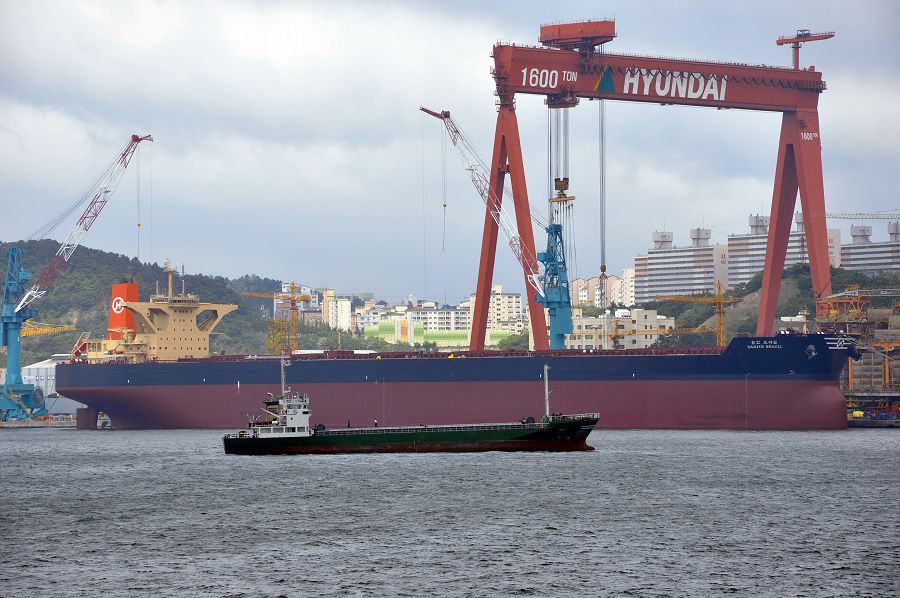

"Hanjin Brazil", at the out fitting pier at Hyunday, May 19th, 2011.
( Photo Copyright Knut Helge Schistad )
"Hanjin Brazil", at the out fitting pier at Hyunday, May 19th, 2011.
( Photo Copyright Knut Helge Schistad )
Ship Info :
IMO number :
|
9493066
|
|
Name of ship :
|
HANJIN BRAZIL
|
(since 01/05/2011)
|
Call Sign :
|
3FTJ
|
|
MMSI :
|
353825000
|
|
Gross tonnage :
|
152219
|
(since 01/05/2011)
|
DWT :
|
299688
|
|
Type of ship :
|
Ore Carrier
|
(since 01/05/2011)
|
Year of build :
|
2011
|
|
Flag :
|
Panama
|
(since 01/05/2011)
|
Status of ship :
|
In Service/Commission
|
(since 27/05/2011)
|
Ship Information :
Vessel Name
|
HANJIN BRAZIL
|
IMO No.
|
9493066
|
Flag
|
PANAMA
|
||||
Port
|
PANAMA
|
Classed by
|
KR
|
Ship Type
|
ORE CARRIER 'ESP'
|
||||
Gross Tons
|
152219
|
Official Number
|
42802-11
|
Class No.
|
1172474
|
||||
Class Notation
|
ORE CARRIER 'ESP' SeaTrust(DSA1, FSA1, HCM) GRAB[20] IWS ENV(IBWM, IAFS, IOPP, ISPP, IGPP, IAPP) CHA LI UMA STCM
|
DeadWeight
|
299688
|
Call Sign
|
3FTJ
|
||||
IMO No.
|
9493066
|
Official No.
|
42802-11
|
Signal Letters
|
3FTJ
|
Radio Installations
|
VHF/DSC MF/DSC GMDSS A1+A2+A3
|
Ship's Name(English)
|
HANJIN BRAZIL
|
Ship's Name(Korean)
|
--
|
Former Names
|
--
|
Owner
|
G.O.T. SHIPPING S.A.(100.0%)
|
Manager
|
HANJIN SHIP MANAGEMENT CO., LTD.
Tel051-460-8084 Fax:051-460-8290
|
Technical Manager
|
HANJIN SHIP MANAGEMENT CO., LTD.
Tel051-460-8084 Fax:051-460-8290
|
Port of Registry
|
PANAMA
|
Flag
|
PANAMA
|
Class notations
Hull
Ship type
Special feature
Machinery
Refrigerating. Installaion
|
+KRS 1
ORE CARRIER 'ESP'
SeaTrust(DSA1, FSA1, HCM) GRAB[20] IWS
ENV(IBWM, IAFS, IOPP, ISPP, IGPP, IAPP) CHA LI
UMA STCM
+KRM 1
|
Tonnnages
Gross
Gross on ITC
Net on ITC
Deadweight
|
152,219
152,219
51,133
299,688
|
Freeboard Summer(mm)
|
7636
|
Draft(m)
|
21.425
|
Speed(Kt)
|
15.30
|
Propulsion System of Ship
|
M
|
Overall Length(m)
|
339.95
|
Reg. Dimensions(L X B X D)(m)
|
328.51 X 55.00 X 29.00
|
Rule Dimensions(L X B X D)(m)
|
325.00 X 55.00 X 29.00
|
No. of Decks
|
1DK
|
Bottom Framing
|
LF
|
No. of Trans. Bulkheads
|
9 W/T
|
Type of Superstructure
|
|
Kind of Chain (Required Diameter(mm))
|
Grade III (114.0)
|
Cargo type & Capacity(m3)
|
|
Tank type & Capacity(m3)
|
FO 8480.70000 FW 630.00000 WB 160893.20000
|
Hatchway Number & Size(m)
|
1 (25.20 X 15.40) 2 (25.20 X 15.40) 3 (25.20 X 15.40) 4 (25.20 X 15.40) 5 (25.20 X 15.40) 6 (25.20 X 15.40) 7 (25.20 X 15.40)
|
No. & (SWL) of Derricks/Cranes
|
|
No. & Type of Engine
Bore & Stroke
Output kW/rpm
|
1D: 2 SA 6 CY
820X3375
24400/76.0
|
No. & Capacity of Generator
|
4 AC 1175kVA 450VOLT
|
Shipbuilder
Place of Built
Date of Built
|
HYUNDAI HEAVY INDUSTRIES CO., LTD.
ULSAN
27.05.2011
|
Date of Conversion
|
|
Hull No.
Date of Keel Laid
Date of Launching
|
HDHI2227
30.11.2010
01.04.2011
|
Engine Builders
Place of Manufacturer
Date of Manufacturer
|
HYUNDAI HEAVY IND. ENGINE & MACHINERY
ULSAN
|
Boiler Makers
Place of Manufacturer
Date of Manufacturer
|
KANGRIM HEAVY INDUSTRIES CO., LTD.
CHANGWON
|
