IVS Cabernet

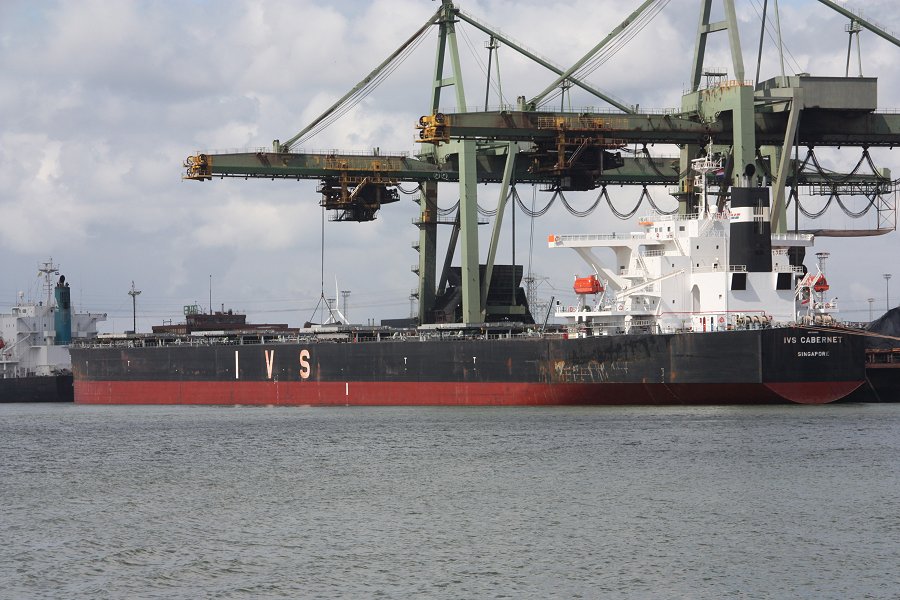

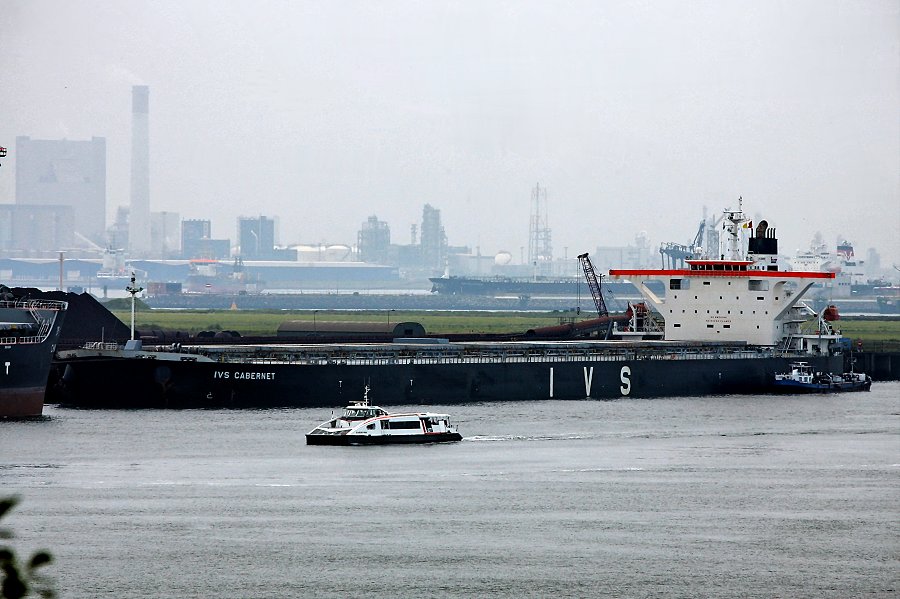

"IVS Cabernet" at Europoort, Rotterdam, August 25th, 2013.
( Photo Copyright Pieter Melissen )

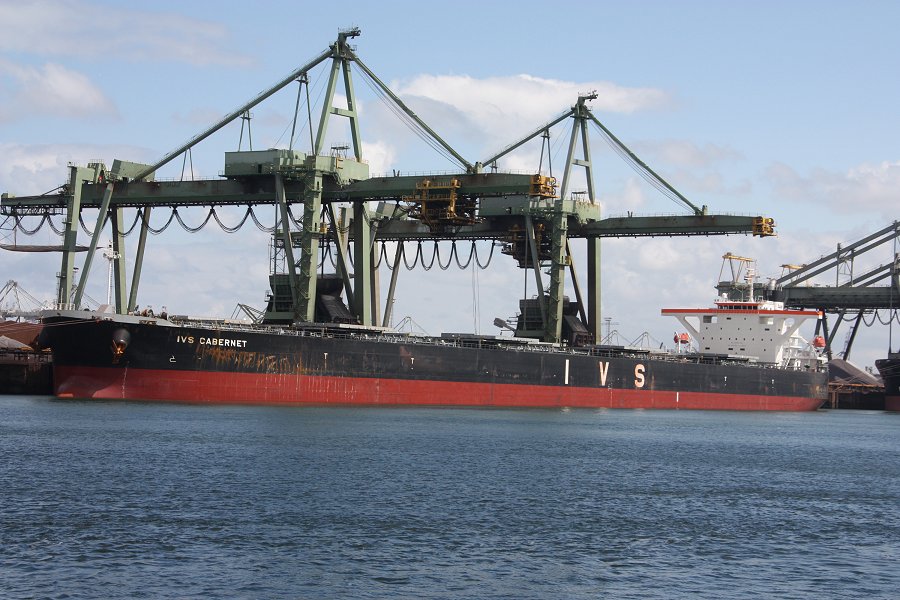

"IVS Cabernet" at Europoort, Rotterdam, July 2nd, 2011.
( Photo Copyright Marius Esman )
"IVS Cabernet" at Europoort, Rotterdam, July 2nd, 2011.
( Photo Copyright Marius Esman )
"IVS Cabernet" arriving at Le Havre, April 6th, 2010.
( Photo Copyright Pacal Drebel )

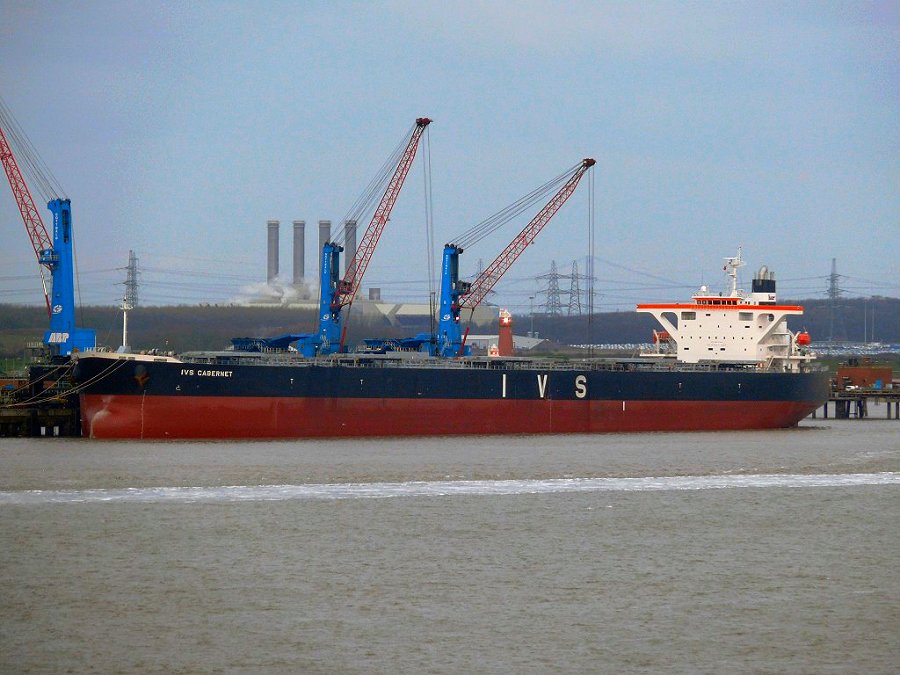

"IVS Cabernet" berthed at Immingham HIT2, March 18th, 2008.
( Photo Copyright Patrick Hill )
Ship Info :
IMO number :
|
9336012
|
|
Name of ship :
|
IVS CABERNET
|
(since 01/10/2007)
|
Call Sign :
|
9VBW9
|
|
MMSI :
|
565598000
|
|
Gross tonnage :
|
89728
|
(during 2007)
|
DWT :
|
177173
|
|
Type of ship :
|
Bulk Carrier
|
(during 2007)
|
Year of build :
|
2007
|
|
Flag :
|
Singapore
|
(since 01/07/2007)
|
Status of ship :
|
In Service/Commission
|
(since 04/10/2007)
|
Last update :
|
04/10/2016
|
|
ClassNK Register of Ships
|
Last update : 31 Oct 2016
|
Classification No. :
|
074021
|
IMO No. :
|
9336012
|
Official No. :
|
392743
|
Signal Letters :
|
9VBW9
|
Flag :
|
Singapore
|
Port of Registry :
|
Singapore
|
Ship's Name :
|
IVS CABERNET
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
G-ACE PTE LTD
|
Management Company 1 :
|
SYNERGY OCEANIC SERVICES INDIA PVT.LTD.
|
Classification Characters, Notations :
|
NS*(BC, SHC 2,4,6,8 E)(ESP) MNS*
|
Descriptive Notes :
|
--
|
Installation Characters :
|
MPP, LSA, RCF, M0, AFS
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II-1, Part E of SOLAS, "Periodically unattended machinery spaces (UMS)".
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
BULK CARRIER
|
- Certificates - SC/SE/SF :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
- OPP :
|
Other than Oil Tanker
|
- EE :
|
Bulk carrier
|
- SMC/ISSC :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
Tonnage Gross (Registered) :
|
89,728
|
Tonnage Net (Registered) :
|
58,849
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
89,728
|
Tonnage Net (TM69) :
|
58,849
|
Deadweight :
|
177,173
|
Summer Freeboard (mm) :
|
6,504
|
Summer Draught (m) :
|
17.955
|
Lf (m) :
|
280.450
|
Continuous Max. Speed (kt) (Sea Trial) :
|
17.0
|
Equipment No. :
|
5,653
|
Overall Length (m) :
|
288.970
|
Moulded LxBxD (m) :
|
279.000 x 45.000 x 24.400
|
Registered LxBxD (m) :
|
280.450 x 45.000 x 24.400
|
Cargo Capacity
(m3 / No. of Containers, etc.) :
|
G 198,969.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 5,572.00 FW 537.00
|
Lifeboats Type, No. & Person :
|
3 2x(25)
|
Rescue Boats Type, No. & Person :
|
1 1x(6) (at combined use for lifeboat)
|
Liferafts Type, No. & Person :
|
1 1x(6) 1 2x(25)
|
Radio Installations :
|
GMDSS A1+A2+A3, SSAS
|
Navigation Equipment :
|
MC, GYRO, HCS, ECDIS, GPS, RDX, RDS, ARPA, AIS, VDR, LOG, LOG(G), ES, ROT, STGTEL, DSL, LRIT, BNWAS
|
No. & Kind of Engines :
|
1D : 2 SA 6 CY
|
Bore x Stroke (mm) :
|
700.0 x 2,674.0
|
Power (kW) :
|
16,860
|
Revolution (rpm) :
|
91.0
|
Manufacturer :
|
MITSUI ENGINEERING & SHIPBUILDING CO., LTD.
|
No. & Kind of Boilers :
|
1 AUX VB
|
Pressure (MPa) :
|
0.69
|
Evaporation :
|
2.45 (ton/h)
|
Manufacturer :
|
OSAKA BOILER MFG., CO., LTD.
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 1,935
|
Kind of Propeller Shaft :
|
1C
|
No. & Shaft Diameter (mm) :
|
1 x 700
|
Shipbuilder :
|
Namura Shipbuilding Co., Ltd. Imari Works
|
Hull No. :
|
268
|
Date of Keel Lay :
|
24 Dec 2004
|
Date of Launch :
|
25 Jul 2007
|
Date of Build :
|
04 Oct 2007
|
Date of Conversion :
|
--
|
