Hbis Sunrise
See also : Orpheus Orchid

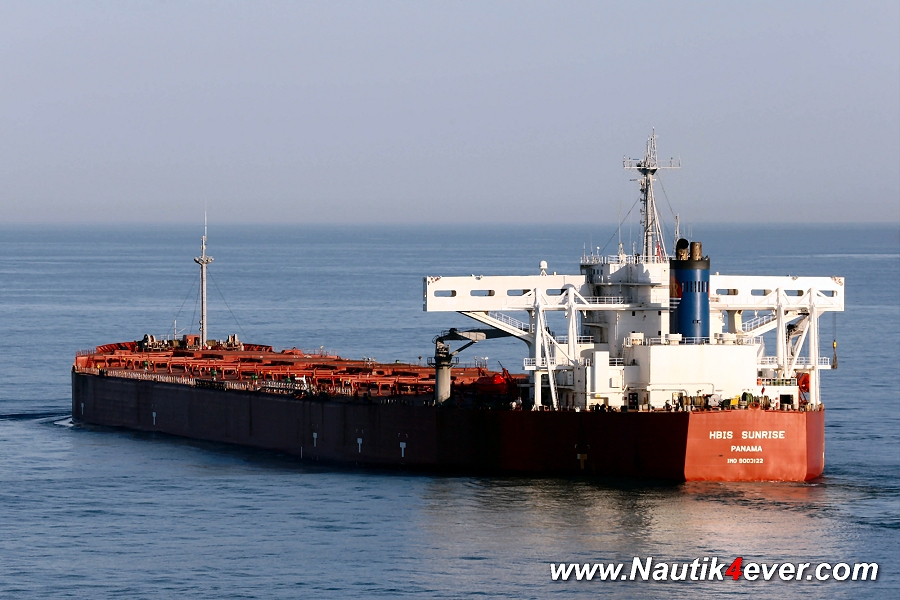

"Hbis Sunrise" in the Malacca Strait, Malaysia, April 30th, 2012.
( Photo Copyright Andreas Schlatterer )
"Hbis Sunrise" in the Malacca Strait, Malaysia, April 30th, 2012.
( Photo Copyright Andreas Schlatterer )
"Hbis Sunrise" at Sepetiba, Brazil, June 17th, 2010.
( Photo Copyright Michael Schindler )
The Miramar Ship Index for
|
ORPHEUS ORCHID
|
IDNo / IMO
|
9003122
|
Year
|
1992
|
Name
|
ORPHEUS ORCHID
|
Flag
|
PAN
|
Owner
|
Idemitsu Tanker Co., Ltd.
|
Type
|
Tanker
|
Tons
|
142558
|
DWT
|
258080
|
LOA
|
315,00
|
LPP
|
303,50
|
Beam
|
60,00
|
Dept
|
28,45
|
Draft
|
19,25
|
Machinery
|
1D-15.0
|
kW
|
19932
|
ShipDesign
|
VLCC
|
Builder
|
Mitsubishi Heavy Ind., Ltd.
|
Yard
|
Nagasaki
|
Yard No
|
2054
|
Country built
|
JPN
|
Keel
|
????
|
Launch
|
16.05.1992
|
Completed
|
22.09.1992
|
Subsequent History
|
2009 ORPHEU ORCHID - Hebei No.1 SA
2010 Converted to Ore Carrier 145217 Grt.
2010 HBIS SUNRISE - Hbis Sunrise 1 SA
|
End
|
----
|
Disposal Data
|
----
|
Korean Register of Shipping
Ship Name : HBIS SUNRISE
General :
Flag
|
PANAMA
|
Class No.
|
9268044
|
Port of Registry
|
PANAMA
|
ITC Tons
|
145,217.00
|
Official No. / Call Sign
|
21914-PEXT-8 / 3EWU9
|
RT on ITC
|
|
Keel Laid
|
1991-11-27
|
Gross Tons
|
145,217.00
|
Launching
|
1992-05-16
|
Deadweight MT
|
268,132.00
|
Built
|
1992-09-22
|
Navigation Area
|
Ocean Going
|
IMO No.
|
9003122
|
Official No.
|
21914-PEXT-8
|
Signal Letters
|
3EWU9
|
Radio Installations
|
GMDSS A1+A2+A3
|
Ship's Name(English)
|
HBIS SUNRISE
|
Ship's Name(Korean)
|
|
Former Names
|
|
Owner
|
HBIS SUNRISE 1 S. A.
|
Manager
|
SINOKOR MARITIME CO.,LTD.
|
Technical Manager
|
SINOKOR SHIP MANAGEMENT CO., LTD.
|
Port of Registry
|
PANAMA
|
Flag
|
PANAMA
|
Class notations
-Hull
-Ship type
-Special feature
-Machinery
-Refrigerating. Installaion
|
KRS1
ORE CARRIER 'ESP'
CLEAN1 ERS Grab LG LI
UMA BWE
KRM1
|
Special Description
|
|
Other Classification
|
|
Tonnnages
-Gross
-Gross on ITC
-Net on ITC
-Deadweight
|
145,217
145,217
77,019
268,132
|
Freeboard Summer(mm)
|
6223
|
Draft(m)
|
20.277
|
Speed(Kt)
|
16.30
|
Propulsion System of Ship
|
M
|
Overall Length(m)
|
315.00
|
Reg. Dimensions(L X B X D)(m)
|
305.23 X 60.00 X 28.45
|
Rule Dimensions(L X B X D)(m)
|
303.50 X 60.00 X 28.45
|
No. of Decks
|
1DK
|
Bottom Framing
|
LF
|
No. of Trans. Bulkheads
|
7 W/T
|
Type of Superstructure
|
|
Kind of Chain
(Required Diameter(mm))
|
Grade III (111.0)
|
Cargo type & Capacity(m3)
|
Grain : 130821?
|
Tank type & Capacity(m3)
|
FO 8449.8 FW 649.7 WB 153823.7
|
Hatchway Number & Size(m)
|
1 (14.51 X 13.60) 2 (14.51 X 13.60) 3 (14.51 X 13.60) 4 (14.51 X 13.60) 5 (14.51 X 13.60) 6 (14.51 X 13.60) 7 (14.51 X 13.60) 8 (14.51 X 13.60) 9 (17.41 X 13.60) 10 (17.41 X 13.60)
|
No. & (SWL) of Derricks/Cranes
|
|
No. & Type of Engine
Bore & Stroke
Output kW/rpm
|
1D: 2 SA 6 CY
850X3150
19932.00/74.0
|
No. & Kind of Boiler
Pressure(kg/cm2)
Heating Surface
|
1Auxiliary Boiler WTB
18.0
814.0
|
2Auxiliary Boiler WTB
12.0
30.2
|
|
No. & Capacity of Generator
|
3 X AC 1125KVA 450VOLT
|
Shipbuilder
Place of Built
Date of Built
|
MITSUBISHI HEAVY IND. LTD.
NAGASAKI
22.09.1992
|
Date of Conversion
|
|
Hull No.
Date of Keel Laid
Date of Launching
|
S.NO.2054
27.11.1991
16.05.1992
|
Engine Builders
Place of Manufacturer
Date of Manufacturer
|
Mitsubishi Heavy Industries Marine Machinery & Equipment Co., Ltd.
NAGASAKI
01.1991
|
Boiler Makers
Place of Manufacturer
Date of Manufacturer
|
Mitsubishi Heavy Industries Marine Machinery & Equipment Co., Ltd.
NAGASAKI
|
