SM Dragon

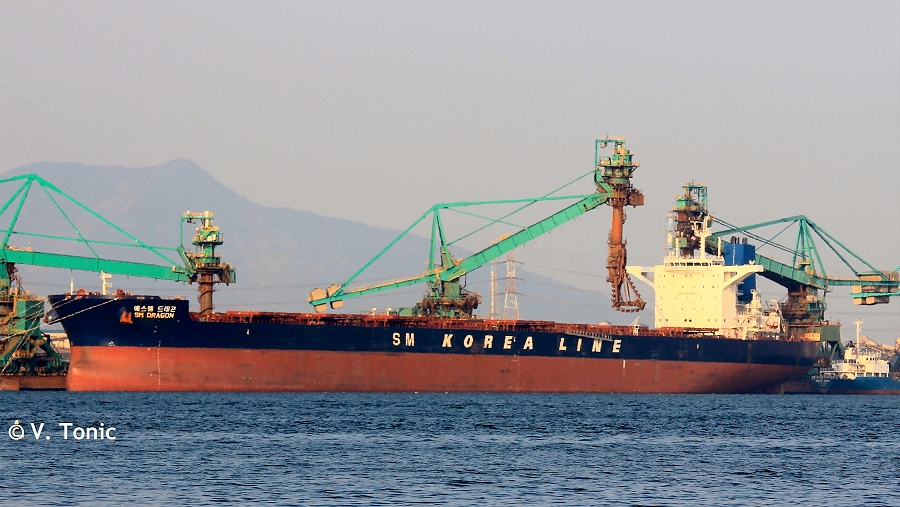

"SM Dragon" at Kwangyang, Rep. of Korea, April 8th, 2017.
( Photo Copyright V. Tonic )

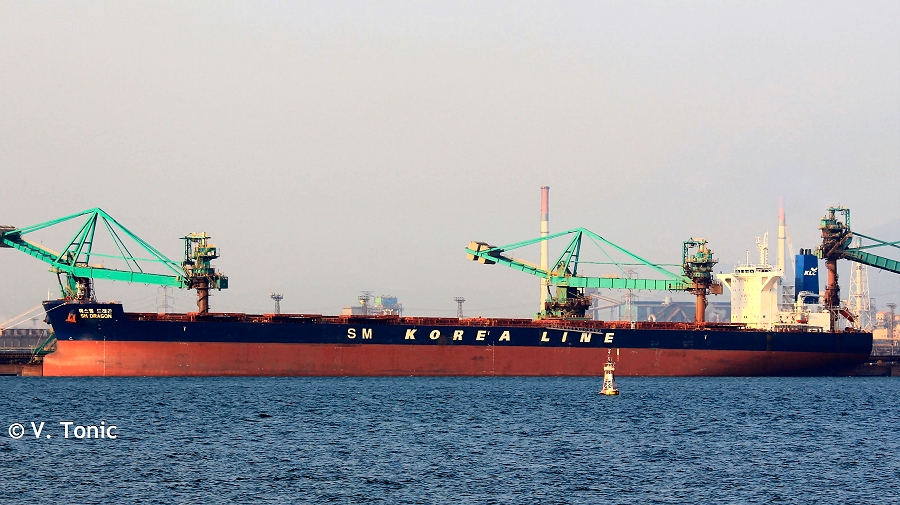

"SM Dragon" at Kwangyang, Rep. of Korea, April 8th, 2017.
( Photo Copyright V. Tonic )

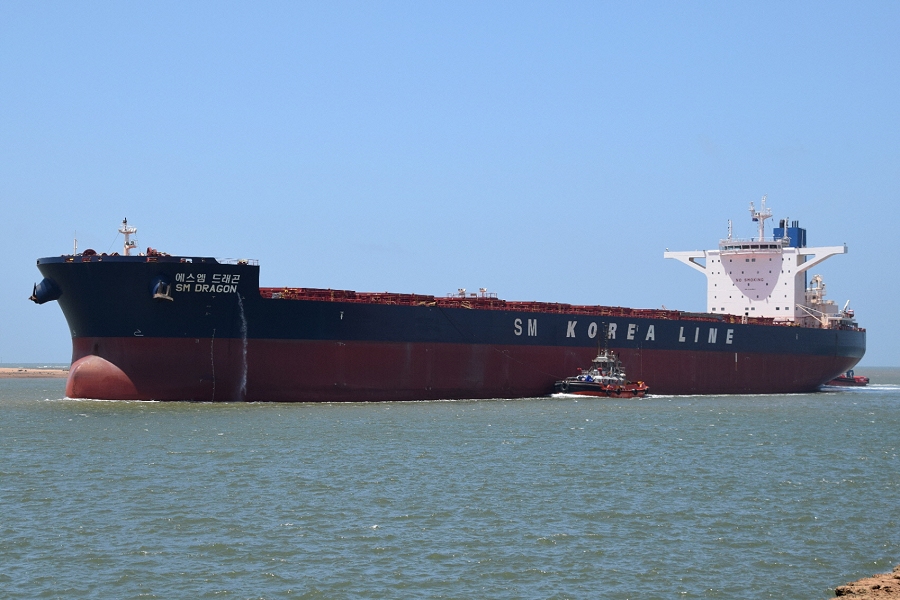

"SM Dragon" arriving at Port Hedland, Australia, loading iron ore, January 9th, 2017.
( Photo Copyright Tropic Maritime Photos, Australia )

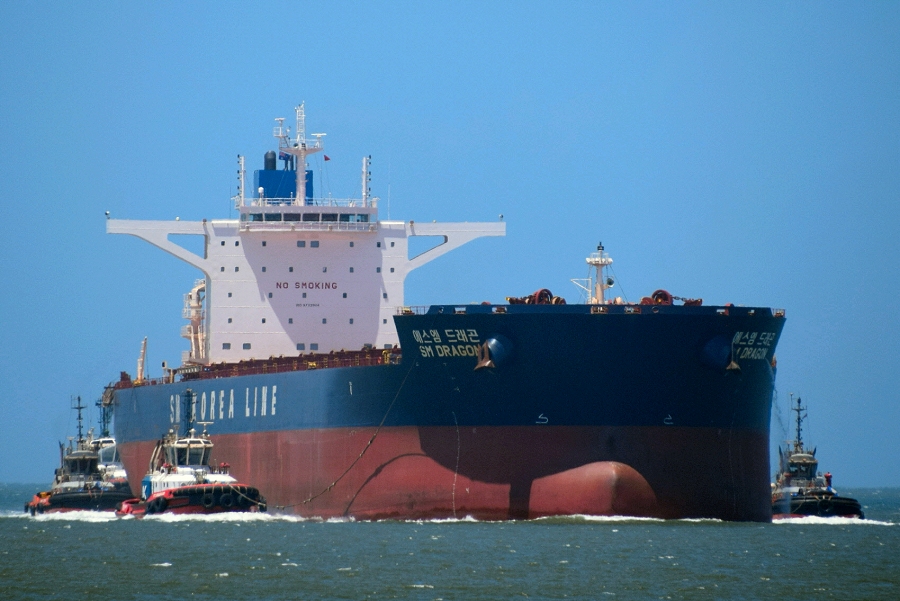

"SM Dragon" arriving at Port Hedland, Australia, loading iron ore, January 9th, 2017.
( Photo Copyright Tropic Maritime Photos, Australia )

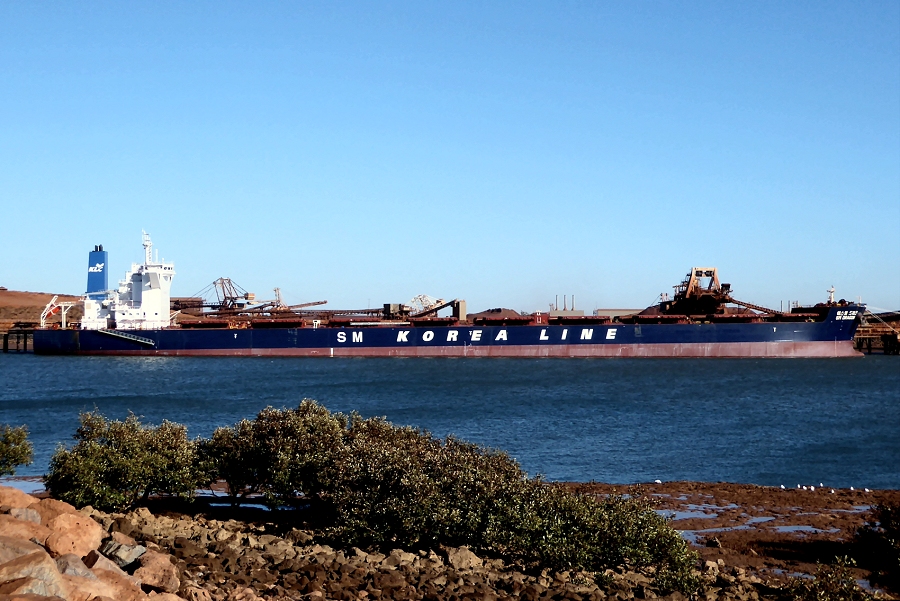

"SM Dragon" at Finucane Island, Port Hedland, Australia, loading iron ore, August 23rd, 2016.
( Photo Copyright Tropic Maritime Photos, Australia )

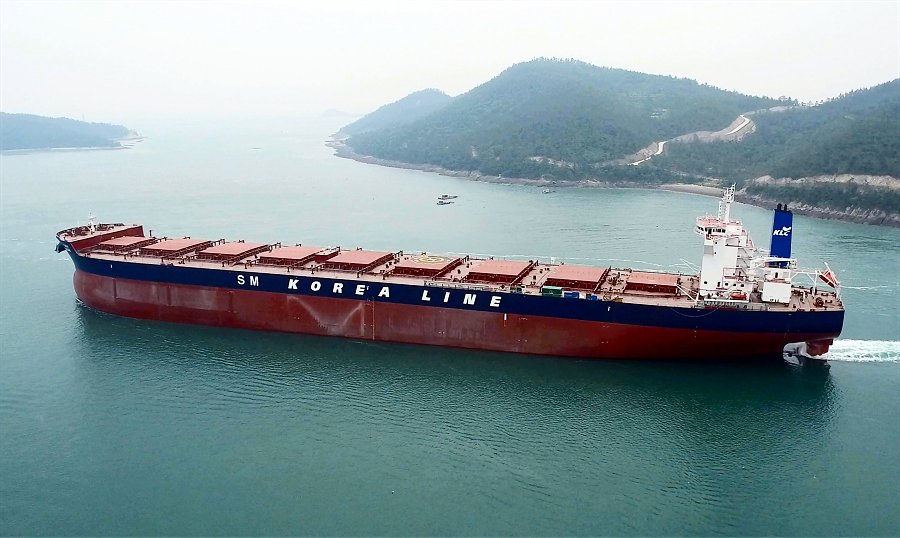

"SM Dragon".( Company photo SM Korea Line )

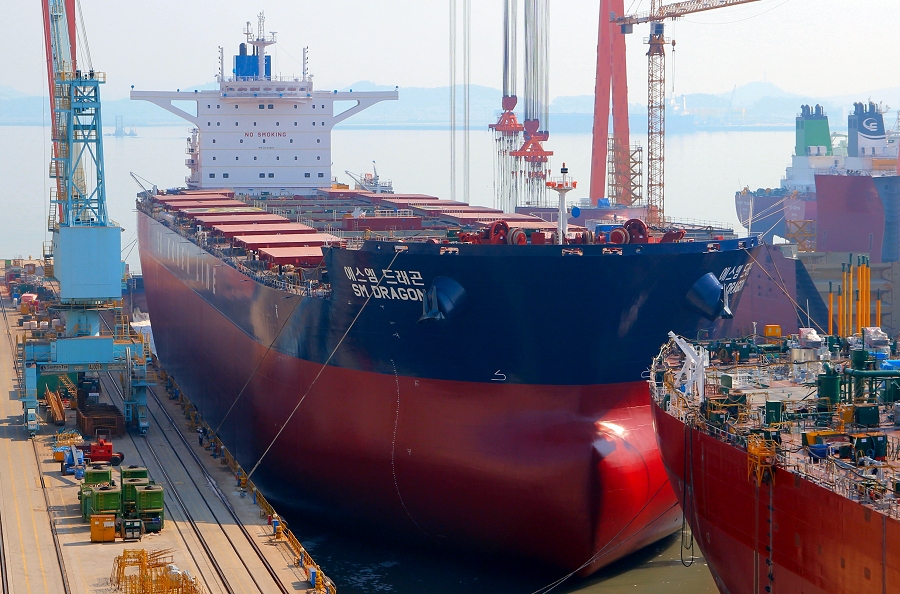

"SM Dragon" in her building dry dock at Daehan shipyard at Mokpo, Mogpo, South Korea, March 27th, 2016.
( Photo Copyright Lappino )
Ship info :
SM DRAGON - IMO n° 9723904
Flag (Panama)
Call Sign 3FJZ7
MMSI 374379000
Gross tonnage 107481 (since 01/09/2019)
DWT 206752
Type of ship Bulk Carrier (since 01/06/2016)
Year of build 2016
Status In Service/Commission (since 07/07/2016)
Last update of ship particulars 15/10/2019
Korean Register of Shipping
General :
Flag
|
PANAMA
|
Class No.
|
1600102
|
Port of Registry
|
PANAMA
|
ITC Tons
|
107,481.00
|
Official No. / Call Sign
|
47922-SC / 3FJZ7
|
RT on ITC
|
|
Keel Laid
|
2015-12-29
|
Gross Tons
|
107,481.00
|
Launching
|
2016-03-26
|
Deadweight MT
|
206,752.00
|
Built
|
2016-07-07
|
Navigation Area
|
Ocean Going
|
IMO No.
|
9723904
|
Official No.
|
47922-SC
|
Signal Letters
|
3FJZ7
|
Radio Installations
|
GMDSS A1+A2+A3
|
Ship's Name(English)
|
SM DRAGON
|
Ship's Name(Korean)
|
|
Former Names
|
|
Owner
|
LTSF KLC3 INC.
|
Manager
|
KLCSM CO., LTD.
Tel051-661-6164 Fax:051-661-6292
|
Technical Manager
|
KLCSM CO., LTD.
Tel051-661-6164 Fax:051-661-6292
|
Port of Registry
|
PANAMA
|
Flag
|
PANAMA
|
Class notations
-Hull
-Ship type
-Special feature
-Machinery
-Refrigerating. Installaion
|
+KRS1
BULK CARRIER 'ESP' (CSR)
BC-A (Hold No. 2, 4, 6 and 8 may be empty) GRAB[20]
SeaTrust(HCM) CLEAN1 IWS PSPC EEAS-EGC-O LG LI
UMA PMS BWE BWT STCM
+KRM1
|
Special Description
|
|
Other Classification
|
|
Tonnnages
-Gross
-Gross on ITC
-Net on ITC
-Deadweight
|
107,481
107,481
67,850
206,752
|
Freeboard Summer(mm)
|
6567
|
Draft(m)
|
18.594
|
Speed(Kt)
|
14.50
|
Propulsion System of Ship
|
M
|
Overall Length(m)
|
300.00
|
Reg. Dimensions(L X B X D)(m)
|
290.81 X 50.00 X 25.10
|
Rule Dimensions(L X B X D)(m)
|
290.81 X 50.00 X 25.10
|
No. of Decks
|
|
Bottom Framing
|
|
No. of Trans. Bulkheads
|
|
Type of Superstructure
|
|
Kind of Chain
(Required Diameter(mm))
|
|
Cargo type & Capacity(m3)
|
Bale : 224094?
|
Tank type & Capacity(m3)
|
FO 5908.4 FW 3864.2 WB 65435.1
|
Hatchway Number & Size(m)
|
|
No. & (SWL) of Derricks/Cranes
|
|
No. & Type of Engine
Bore & Stroke
Output kW/rpm
|
1D: 2 SA 6 CY
700X3256
18150.00/74.7
|
No. & Kind of Boiler
Pressure(kg/cm2)
Heating Surface
|
1Auxiliary Boiler STB
8.0
31.8
|
2Economizer EGE
11.5
435.0
|
|
No. & Capacity of Generator
|
3 X AC 1125KVA 450VOLT
|
Shipbuilder
Place of Built
Date of Built
|
DAEHAN SHIPBUILDING CO., LTD.
MOKPO
07.07.2016
|
Date of Conversion
|
|
Hull No.
Date of Keel Laid
Date of Launching
|
H1065
29.12.2015
26.03.2016
|
Engine Builders
Place of Manufacturer
Date of Manufacturer
|
Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division
ULSAN
01.2016
|
Boiler Makers
Place of Manufacturer
Date of Manufacturer
|
Kangrim Heavy Industrial Co., Ltd.
CHANGWON
12.2015
|
