Spring Citrus

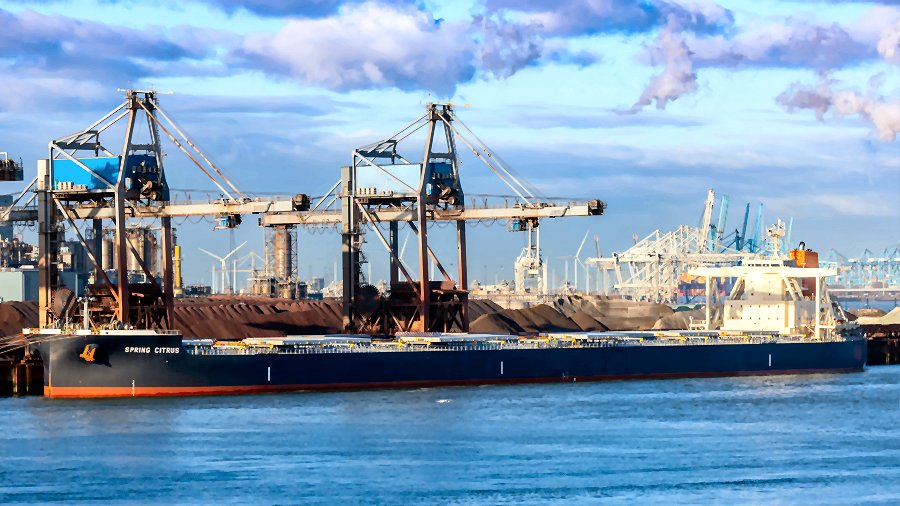

"Spring Citrus", at Europoort, Rotterdam, March 14th, 2025.
( Photo Copyright Edwin van Werd )

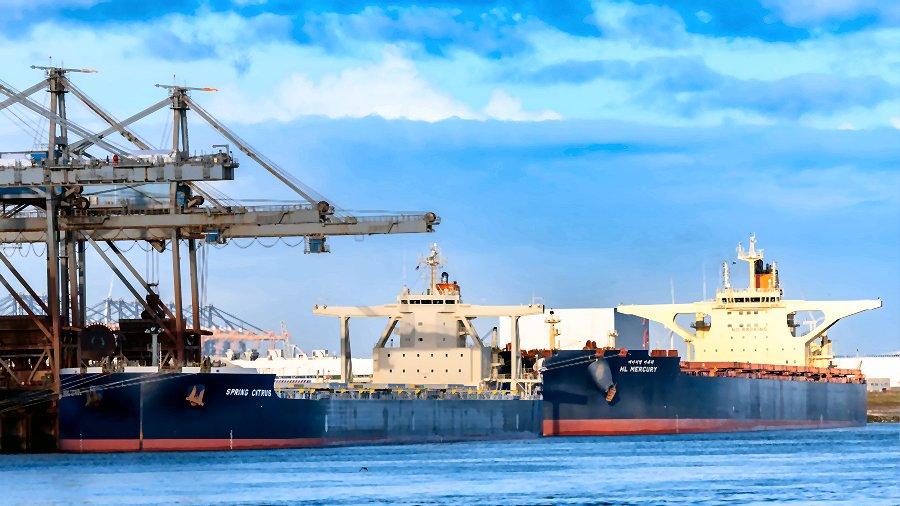

"Spring Citrus", at Europoort, Rotterdam, March 14th, 2025, behind her "HL Mercury".
( Photo Copyright Edwin van Werd )
Ship info :
SPRING CITRUS - IMO n° 9905215
Flag (Panama)
Call Sign3E3904
MMSI352986136
Gross tonnage93297(since 01/07/2021)
DWT182348
Type of shipBulk Carrier(since 01/07/2021)
Year of build2021
StatusIn Service/Commission(since 30/07/2021)
Last update of ship particulars 15/04/2025
The Miramar Ship Index for
|
SPRING CITRUS
|
IDNo / IMO
|
9905215
|
Year
|
2021
|
Name
|
SPRING CITRUS
|
Flag
|
PAN
|
Owner
|
Primavera Montana S.A.
|
Type
|
Bulk Carrier
|
Tons
|
93297
|
DWT
|
182348
|
LOA
|
292.0
|
LPP
|
288.4
|
Beam
|
45.0
|
Dept
|
24.55
|
Draft
|
18.23
|
Mach.
|
1D-14.5
|
Power
|
15540
|
Design
|
Bulk Carrier
|
Builder
|
Japan Marine United Corp.
|
Yard
|
Ariake
|
Yard No
|
5201
|
Built
|
JAP
|
Keel
|
17.11.2020
|
Launch
|
15.05.2021
|
Compl.
|
30.07.2021
|
Subsequent History
|
None
|
End
|
----
|
Disposal Data
|
----
|
ClassNK Register of Ships
|
Last update : 11 Jul 2024
|
Classification No. :
|
212455
|
IMO No. :
|
9905215
|
Official No. :
|
53877-TJ
|
Signal Letters :
|
1,79769313486232E+308
|
Flag :
|
Panama
|
Port of Registry :
|
Panama
|
Ship's Name :
|
SPRING CITRUS
|
Former Name 1 :
|
--
|
Registered Owner 1 :
|
PRIMAVERA MONTANA S.A.
|
Management Company 1 :
|
--
|
Classification Characters, Notations :
|
NS*(CSR, BC-A, BC-XII, GRAB 35, PSPC-WBT, NC)(ESP)(PSCM)(IHM)(NOx-III(SCR)) MNS*
|
Descriptive Notes
|
|
Design Condition :
|
Complied with Part CSR-B&T of the Rules for the Survey and Construction of Steel Ships / Strengthened for heavy cargo loading where hold nos. 2,4,6 & 8 may be empty
|
Other :
|
NOx-III(2016)(M/E : SCR), (G/E(Nos.1, 2, 3) : SCR)
|
Installation Characters :
|
MPP, LSA, RCF, M0, AFS, BWM
|
Installation Descriptive Notes
|
|
Automatic and Remote Control Systems :
|
The ship has complied with the requirements of Chapter II-1, Part E of SOLAS, "Periodically unattended machinery spaces (UMS)".
|
Special Description :
|
--
|
Other Classification :
|
--
|
Type of Ship -Purpose(intended service) :
|
BULK CARRIER
|
- Certificates - SC/SE/SF :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
- OPP :
|
Other than Oil Tanker
|
- EE :
|
Bulk carrier
|
- SMC/ISSC :
|
Bulk carrier (SOLAS IX Reg. 1.6)
|
Tonnage Gross (Registered) :
|
93,297
|
Tonnage Net (Registered) :
|
59,349
|
Tonnage Gross (Local) :
|
--
|
Tonnage Net (Local) :
|
--
|
Tonnage Gross (TM69) :
|
93,297
|
Tonnage Net (TM69) :
|
59,349
|
Deadweight :
|
182,348
|
Summer Freeboard (mm) :
|
6,381
|
Summer Draught (m) :
|
18234
|
Lf (m) :
|
288420
|
Continuous Max. Speed (kt) sp; (Sea Trial) :
|
--
|
Equipment No. :
|
5,096
|
Overall Length (m) :
|
292000
|
Moulded LxBxD (m) :
|
288.400 x 45.000 x 24.550
|
Registered LxBxD (m) :
|
288.420 x 45.000 x 24.550
|
Cargo Capacity (m3 / No. of Containers, etc.) :
|
G 195,291.00
|
No. of Passengers :
|
--
|
Capacity of Tanks (m3) :
|
FO 4,294.00 FW 448.00
|
No. & Kind of Engines :
|
1DE : 2 SA 7 CY
|
Bore x Stroke (mm) :
|
650.0 x 2,730.0
|
Power (kW) :
|
15,54
|
Revolution (rpm) :
|
85.0
|
Manufacturer :
|
HITACHI ZOSEN CORPORATION ARIAKE WORKS
|
No. & Kind of Boilers :
|
1 AUX VB
|
Pressure (MPa) :
|
0.70
|
Evaporation :
|
3.27 (ton/h)
|
Manufacturer :
|
OSAKA BOILER MFG. CO., LTD.
*Evaporation rate: Thermal output (kW) to be filled up in case of TOH.
|
No. & Capacity of Generators (kVA) :
|
4 AC 2,650
|
Kind of Propeller Shaft :
|
1B
|
Fixed Method of Propeller :
|
Keyless
|
No. & Shaft Diameter (mm) :
|
1 x 670
|
Shipbuilder :
|
JAPAN MARINE UNITED CORPORATION ARIAKE SHIPYARD
|
Hull No. :
|
5201
|
Date of Keel Lay :
|
17-11-2020
|
Date of Launch :
|
15 May 2021
|
Date of Build :
|
30-07-2021
|
Date of Conversion :
|
--
|
